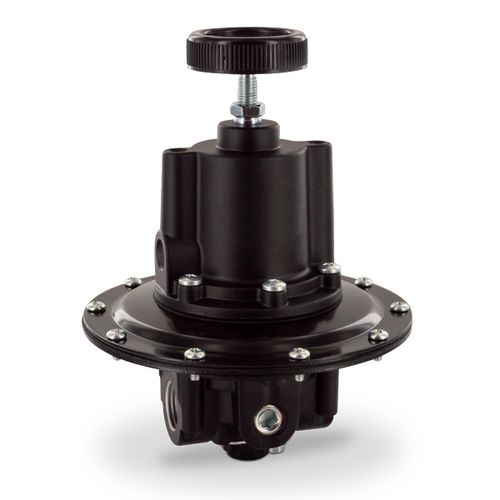

Compressed air pressure regulator R110

for inert gasesfor nitrogendiaphragm

Description Diaphragm regulator with small dimensions. Suitable for low pressure applications, with high relief capacity. A sensitive rolling diaphragm ensure constant outlet pressure even with changing supply pressure and flow fluctuations Media compressed air or non-corrosive gases Recommendation connection thread G1/2 for pressure range 0...35 / 140 / 280 mbar Supply pressure max. 10 bar Accuracy response sensitivity: < 0,2 mbar - Air consumption max. 2 l/min depending on outlet pressure Adjustment by handwheel with locknut Relieving function relieving, optionally non-relieving - Relief capacity 14 l/min at 7 mbar above setpoint 70 mbar Gauge port G1/4 on both sides of the body. optionally VTNPT Mountirtg position any Température range 0 °C to 90 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40 °F Material Bodc aluminium die-cast Inner valve: stainless Steel and galvanised Steel Elastomer: NBR/Buna-N. optionally FKM
