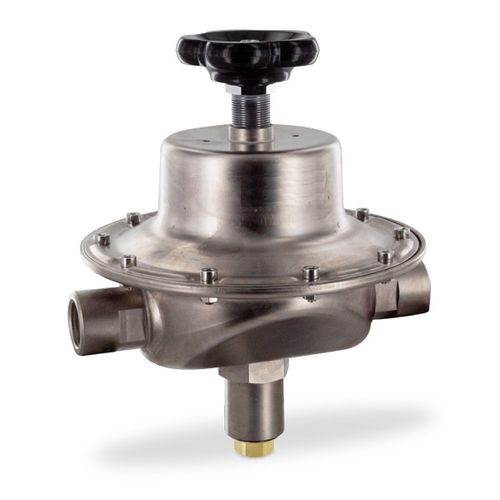

Compressed air pressure regulator RR
for airfor inert gasesfor oxygen

Add to favorites

Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Product

for compressed air, for air, for inert gases, for oxygen, propane, for nitrogen, for hydrogen, for natural gas

Technology

membrane

Number of stages

single-stage

Material

brass, PTFE, EPDM

Applications

precision, low-pressure, for analytical instruments, high-purity, for chromatography

Other characteristics

high-purity

Pressure

Max.: 1,500 mbar
(21.76 psi)

Min.: 5 mbar
(0.07 psi)

Flow

Max.: 850 l/min
(224.55 us gal/min)

Min.: 75 l/min
(19.81 us gal/min)

Description

Description Précision regulator in mbar range without auxiliary power. Accurate and reliable régulation with large diaphragm for high sensitivity Media compressed air or non-corrosive gases up to 5.0 purity (99.999% vol.) Supply pressure max. 20 bar Air consumption without constant bleed Adjustment by handwheel with locknut Relieving function non-relieving Gauge port G1/2 on the bottom side of the body, screw plug supplied Mounting position any Température range -20 °C to 70 °C / -4 °F to 158 °F, for CO* up to 40 °C / 104 °F Material Body: Diaphragm: O-rings: Inner valve: grey-coated brass EPDM with PTFE coating NBR/Buna-N brass V
