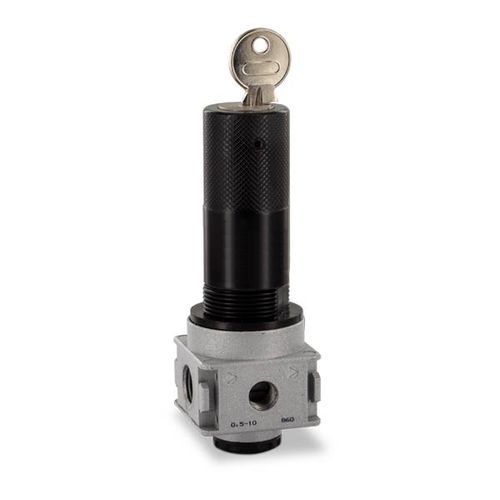

Compressed air pressure regulator RS
for inert gasesdiaphragmsingle-stage

compressed air pressure regulator
compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air, for inert gases
Technology
diaphragm
Number of stages
single-stage
Material
zinc
Applications
industrial, pneumatic
Other characteristics
with integrated safety, vertical
Pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 10,000 l/min
(2,641.72 us gal/min)

Min.: 1,000 l/min
(264.17 us gal/min)

Description

Description Pressure regulator with diaphragm of solid design lockable with key, cylinder lock of brass Media compressed air or non-corrosive gases Supply pressure max. 16 bar Air consumption no air consumption Adjustment by beaded. cylindrically handwheel Relieving function relieving Gauge port G% on both sides of the body Mounting position any Température range -10°C to 60°C / 14°F to 140°F Material Body:zinc die-cast Lock cylinder: brass Spring cage: POM and brass Adjusting spring:Steel zinc-plated
