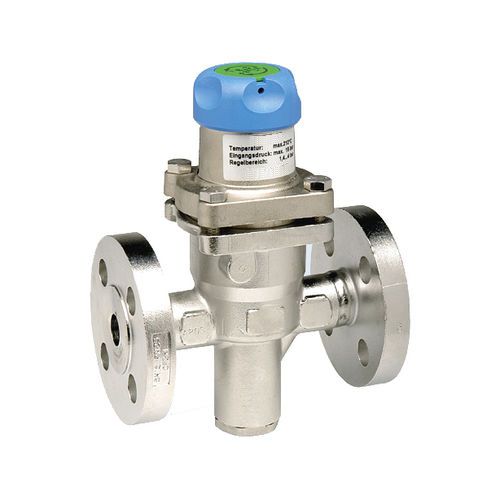

Steam pressure regulator RUspringsingle-stagestainless steel
Add to favorites
Compare this product
Characteristics
- Product
- for steam
- Technology
- spring
- Number of stages
- single-stage
- Material
- stainless steel, steel, PTFE, EPDM
- Applications
- industrial, for high-temperature processing
- Other characteristics
- line, direct-operated, direct-acting, flange, high-temperature, corrosion-resistant
- Pressure
Max.: 9 bar
(130.53 psi)Min.: 0.14 bar
(2.03 psi)19 bar
(275.57 psi)- Flow
Max.: 15 m³/h
(529.72 ft³/h)Min.: 1.5 m³/h
(52.97 ft³/h)
Description
Description
Directiy acting pressure regulator with stainless Steel Inner parts suitable for steam and compressed air.
Media
compressed air, non-corrosive gases or steam with dryness of at least 98%
Supply pressure
RUG: max. 19 bar at 210 °C / 410 °F, max. 17 bar for red brass version
RUH: max. 10 bar at 184 °C / 363 °F
Air consumption
without constant bleed
Adjustment
by plastic knob
Relieving function - non-relieving
Gauge port
not available -
Mounting position any
Température range
RUG: max. 210 °C / 410 °F, -
RUH: max. 184 °C / 363 °F
Material
Body: spheroidal cast iron EN-GJS-400-18-LT (GGG40.3),
optionally red brass Rg5 or stainless Steel 1.4404 at RUG
Spring cage: epoxy-coated aluminium, nickel-plated aluminium at RUG
Inner valve / bellows: stainless Steel 1.4404 and 1.4571
O-ring / seal: - EPDM and PTFE
