Description

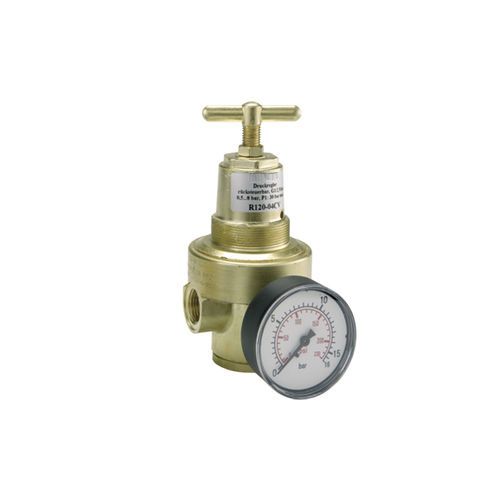

Pressure regulator of solid design. Made of brass or bronze. Sériés R120-0.A to -0.E and - '
R120-16 and -32 are equipped with diaphragms, ail other are piston-operated.
Media
compressed air, non-corrosive gases or liquids
Supply pressure see chart, max. 50 bar, for liquids Amax= 25 bar
Adjustment
R120-01/-A2: - with adjusting screw, at R120-02 with black knob
R120-04 to -B6: with T-handle - R120-16: with hexangonal spindel (spanner size 24 mm)
R120-16/-24/-32: by pilot pressure regulator
Relieving function
R120-B6: relieving - R120-16/-24/-32: non-relieving
Gauge port
R120-01/-A2: G'/s on both sides of the body, ail others GV4 on both sides of the body, one screw plug supplied -
Mounting position any
Température range
0 °C bis 80 °C / 32 °F to 176 °F, for appropriately conditioned compressed air down to -20 °C / -4 °F or low température version down to -40 °C / -40 °F, optionally high température version up to 130 °C / 266 °F
Material
Body: brass
O-ring: FKM, optionally EPDM
Spring cage: brass at R120-01 to -04, aluminum at R120-06 to -32
Inner valve: brass
Diaphragm: NBR/Buna-N with PTFE coating
