Description

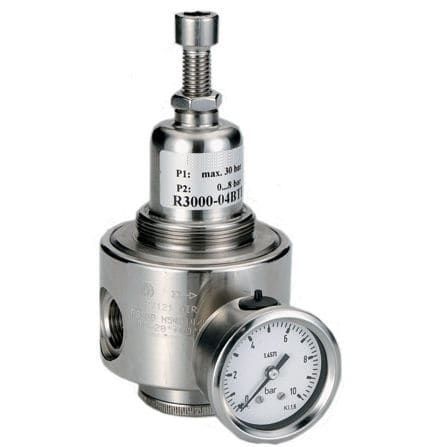

Pressure regulator made of stainless steel. diaphragm- or piston-operated, up to Pi = 60 bar.
Media
compressed air. gases or liquids
Supply pressure
see chart, max. 60 bar. for liquids Apmax. = 25 bar
Adjustment
by adjusting screw at R3000-01 to -A8. and -24 to -32
by T-handle at - R3000-08 to -16C, with pilot-regulator by adjusting screw at -16D
Relieving function
non-reiieving. optionally relieving - Mounting position any
Gauge port
GVi at R3000-01 and -A2. ail others GV« on bot h sides of the body. one screw plug supplied
Température range
O'Cto 80 °C / 32 °C to 176 °F for FKM or EPDM 0 ®C to 130 ®C / 32 ®C to 266 ®F for high température version for appropriately conditioned compressed air down to -20 ®C / -4 ®F or low température version down to -40°C / -40 °F
Material
Body:stainless Steel 316L.material no. 1.4404
Diaphragm:NBR/Buna-N with PTFE coating, optionally stainless steel
O-rirtgs:FKM. optionally EPDM
Internai parts:stainless steel 316L. material no. 1.4404
