Pneumatic fitting E Series
quick90° angle45° angle

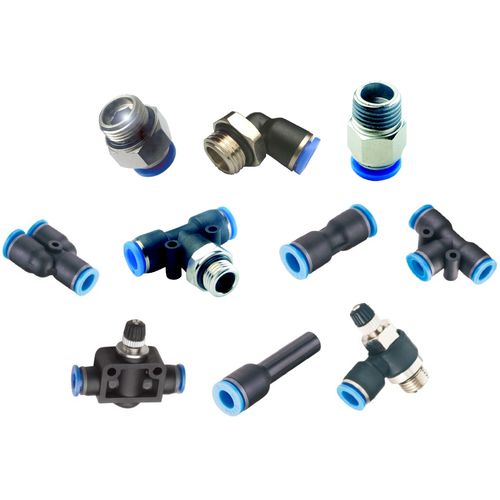

Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 2
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 3
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 4
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 5
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 6
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 7
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 8
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 9
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 10
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 11
Pneumatic fitting - E Series - ALPHA AUTOMATISMES Sarl - quick / 90° angle / 45° angle - image - 12
Add to favorites
Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Applications
pneumatic
Attachment
quick
Configuration
90° angle, 45° angle, right-angle, T, Y, cross
Material
plastic, technopolymer, resin, nickel-plated brass
Gender
male, female, female-female
Other characteristics
union, standard, compact, for hoses, external thread, poppet, orientable
Diameter

Max.: 12 mm
(0.472 in)

Min.: 4 mm
(0.157 in)

Operating pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Description

Instant Pneumatic Fittings - Ø 4 to 12 mm - M5 to 1/2" Conical (Teflon-coated) or cylindrical (O-ring) fitting Features: - Competitive pricing, robust, highly reliable, with over 30 years of proven experience - Firm attachment of the hose - Stainless steel hook - Compatible with industrial vacuum - For calibrated technical hose made of nylon or polyurethane - For calibrated technical hose made of nylon (KNYT), polyurethane (KPUT), or copolymer (FLEX) Materials: - Body (straight fitting): nickel-plated brass - Body (elbow fitting): nickel-plated brass and acetal resin - Hook: stainless steel - Hose seal: NBR - Ring: acetal resin - Sealing for cylindrical connection: NBR O-ring - Sealing for conical connection: Teflon-coated Technical Specifications: - Fluid: compressed air and other fluids compatible with the materials - Pressure range: -1 to 10 bar - Temperature range: -20 to +70°C - Compatible hose: pneumatic hose in nylon or polyurethane - Hose diameter: 4, 6, 8, 10, or 12 mm - Connection: M5, G1/8", G1/4", G3/8", or G1/2"
