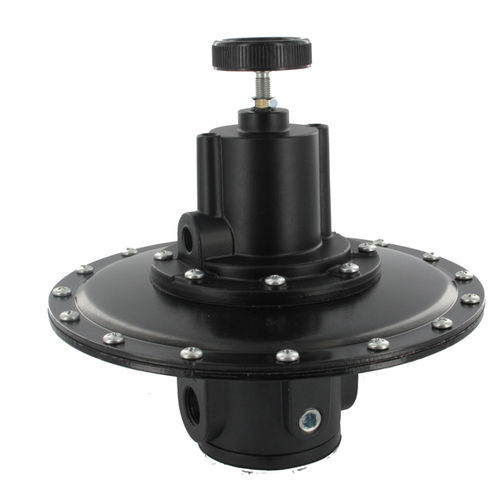

Compressed air pressure regulator R4100
for inert gasesmembranesingle-stage

Compressed air pressure regulator - R4100 - ALPHA AUTOMATISMES Sarl - for inert gases / membrane / single-stage

Add to favorites

Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Product

for compressed air, for inert gases

Technology

membrane

Number of stages

single-stage, two-stage

Material

aluminum

Applications

precision, low-pressure, for pneumatic applications

Other characteristics

zero-bleed, relieving

Pressure

Min.: 2 mbar
(0.03 psi)

Max.: 350 mbar
(5.08 psi)

10,000 mbar
(145.04 psi)

Flow

Min.: 500 l/min
(132.09 us gal/min)

Max.: 700 l/min
(184.92 us gal/min)

Description

Description High précision diaphragm pressure regulator with high flow, without zéro shut-off (counterpressure is required). Media compressed air or non-corrosive gases Supply pressure max. 10 bar Accuracy sensitivity < 2 mbar Air consumption without constant bleed Adjustment by handwheel with locknut Relieving function relieving Gauge port G1/4 on both sides of the body. screw plug supplied Mounting position any Température range 0 °C to 90 °C / 32 °F to 194°F. for appropriately conditioned compressed air down to -40 °C / -40 °F Material Body - aluminium die-cast Elastomer: NBR/Buna-N Inner valve: stainless Steel. brass, aluminium and Steel
