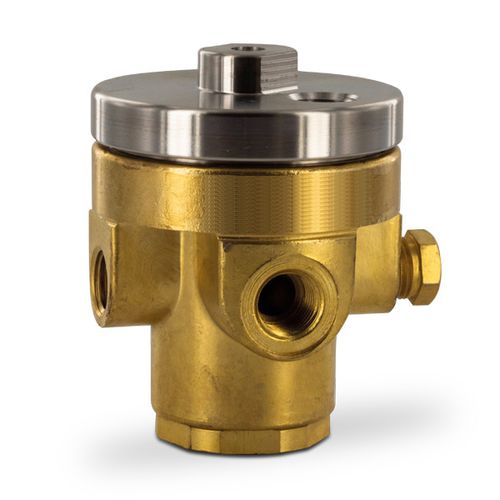

Water pressure regulator R120J
for gasfor compressed airfor air

Add to favorites

Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Product

for water, for gas, for compressed air, for air, for inert gases, for oxygen, propane, for nitrogen, for CO2, for hydrogen, for natural gas

Technology

membrane

Number of stages

single-stage

Material

brass, EPDM, NBR

Applications

high-pressure, industrial, for pneumatic applications

Other characteristics

pilote-operated

Pressure

Max.: 50 bar
(725.19 psi)

Min.: 1 bar
(14.5 psi)

Flow

Max.: 15,000 l/min
(3,962.58 us gal/min)

Min.: 420 l/min
(110.95 us gal/min)

Description

Solid volume booster made of brass or bronze throughout with a 1 to 1 transmission ratio. R120-02J2 to R120-08J2 are diaphragm-operated. R120-12J, R120-16J and R120-..J5 are piston-operated. Media compressed air, non-corrosive gases or liquids Supply pressure max. 50 bar. for liquids Ap max = 25 bar Pilot pressure max. 15 bar for R120-..J2, max. 50 bar for R120-..J5, pilot port G1/4 Air consumption without constant bleed Relieving function non-relieving. optionally relieving Relief size DN2 Gauge port G% on both sides of the body. one screw plug supplied Mounting position any Température range 0 °C to 80 °C / 32 °F to 176 °F for FKM or EPDM 0 “C to 130 “C / 32 °F to 266 °F for high température version, for appropriately conditioned compressed air down to -20 °C / -4 °F, optionally low température version down to -40 °C / -40 °F Material Body: brass up to GVfe, bronze from G% on O-rings: - FKM. optionally EPDM Diaphragm: NBR/Buna-N with PTFE coating - Inner valve: brass
