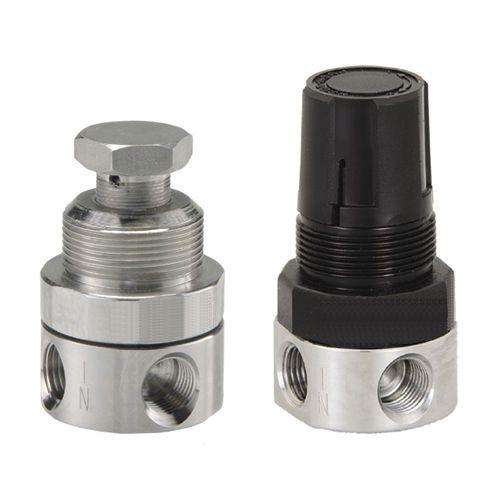

Water pressure regulator R364Sfor gasfor compressed airdiaphragm
Add to favorites
Compare this product
Characteristics
- Product
- for water, for gas, for compressed air
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- stainless steel
- Applications
- industrial, for medical applications, for hygienic applications
- Other characteristics
- miniature, relieving, non-relieving, corrosion-resistant
- Pressure
Min.: 0.2 bar
(2.9 psi)Max.: 9 bar
(130.53 psi)21 bar
(304.58 psi)- Flow
Min.: 6 l/min
(1.59 us gal/min)Max.: 450 l/min
(118.88 us gal/min)
Description
Description
diaphragm-operated pressure regulator in small design
Media
compressed air. gases or liquids
Supply pressure
max. 21 bar
Adjustment
by plastic knob with snap-lock
by hexagonal spindle at R354
Relieving function
relèving. optionaly non-relieving
Gauge port
G1/4 on both sides of the body, screw plugs supplied
Mounting position
any
Température range
0 CC to 65 °C - / 32 °F to 149 °F, for - appropriately - conditioned compressed air down to -30 °C / -22 °F
0 eC to 80 °C - / 32 °F to 176 °F for spring - cage - made of fiberglass or stainless Steel
Material
Body: - stainless - Steel - 316
Spring cage: glass fibre-reinforced plastic at R364.
stainless Steel 316 at R354, optionally fibreglass at R364 Elastomer: - FKM
Inner valve: - stainless Steel 316
V
