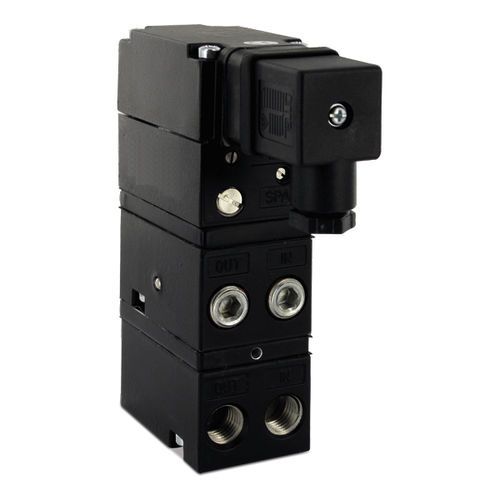

Explosion-proof pressure regulator PT6

for gasfor compressed airsingle-stage

The pressure transducer is capable of giving a pneumatic outlet proportional to the voltage or current input. With a 30mm x 30mm coupling socket, the electrical connector has been made in line with DIN 43650A. It has a 3 pin connector, and an 18mm contact gap. The sensitivity of the response is less than 0.2% FS. Linearity and Hysteresis are at less than 0.25% FS and less than 0.5% FS between 0.2 and 2 bar respectively. Repeatability is less than 0.1% FS. Adjustment can be done at a range of 40% FS. It should be mounted upright with a tolerance of ± 15°. Operating temperature is between -22 °F and 149 °F.
