Air back-pressure regulator PRE
diaphragmsingle-stagealuminum

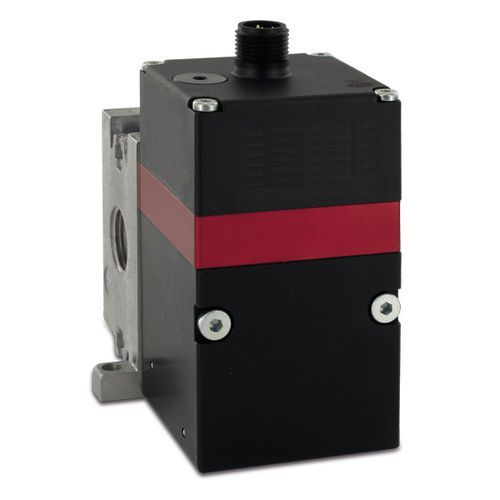

Air back-pressure regulator - PRE - ALPHA AUTOMATISMES Sarl - diaphragm / single-stage / aluminum
Air back-pressure regulator - PRE - ALPHA AUTOMATISMES Sarl - diaphragm / single-stage / aluminum
Add to favorites
Compare this product


Characteristics

Product
for air
Technology
diaphragm
Number of stages
single-stage
Material
aluminum
Applications
industrial, pneumatic
Other characteristics
high-precision, proportional, electropneumatic
Pressure

Max.: 17 bar
(246.56 psi)

Min.: -1 bar
(-14.5 psi)

Flow

Max.: 2,400 l/min
(634.01 us gal/min)

Min.: 50 l/min
(13.21 us gal/min)

Description

Piezo-operated proportional pressure valve based on the principle of a piezo element which bends when voltage is applied. At the end of the piezo element is a flapper valve, which operates against a precision nozzle to create back pressure on the control diaphragm of a booster relay. A pressure transducer provides feedback of the outlet pressure compared with the setpoint value with correction by the electronic control system if necessary.
