Description

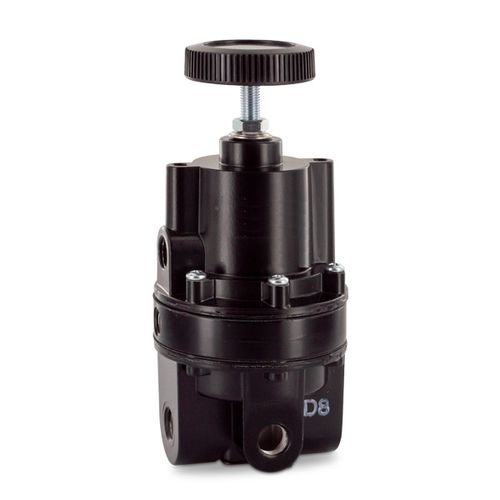

Signal-operated regulator designed to provide outlet pressure which is the sum of the input signal pressure plus a preset bias. As an option, the relay can start with bias range -0.3 bar / -4 psi.
The relay can also be used as a differential pressure regulator.
Media
compressed air or non-corrosive gases
Supply pressure
max. 17 bar
Pilot pressure
max. 10 bar, pilot port G1/4
Accuracy
response sensitivity: < 1 mbar
Air consumption
without constant bleed
Relieving function relieving
Relief capacity
110 l/min at 1.5 bar outlet and 0.35 bar overpressure above setpoint
Gauge port
G1/4 on both sides of the body, screw plugs supplied Mounting position any
Température range
0 °C to 90 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40 °F
Material
Body:aluminium die-cast
Elastomer:NBR/Buna-N
Inner valve: brass
