Description

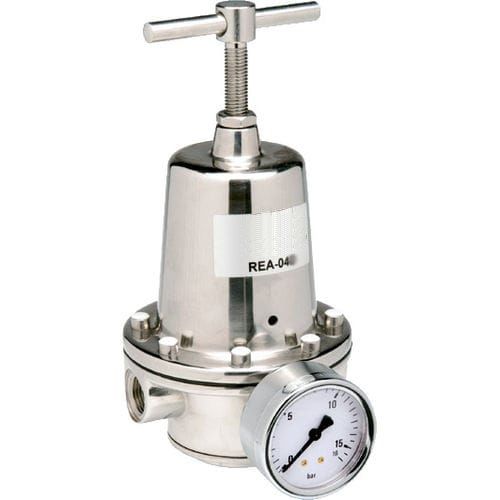

Diaphragm-operated pressure regulator made of stainless Steel throughout Even when spindle is unscrewed the indicated minimum outlet pressure is existent.
Media
compressed air, gases or liquids
Supply pressure
see ch art, max. 25 bar
Adjustment
by T-handle. with locknut
Relieving function
non-relieving
Gauge port
G1/4 on both sides of the body, one screw plug supplied
Mounting position
any
Température range
0 °C to 120 °C / 32 °F to 248 °F for FKM. for appropriately conditioned compr. air down to -30 °C / -22 °F 0 °C to 150 °C / 32 °F to 302 °F for EPDM. for appropriately conditioned compr. air down to -30 °C / -22 °F
Material
Body: - stainless Steel 316L, mat. no. 1.4408
Diaphragm: FKM, optionally EPDM or PTFE
