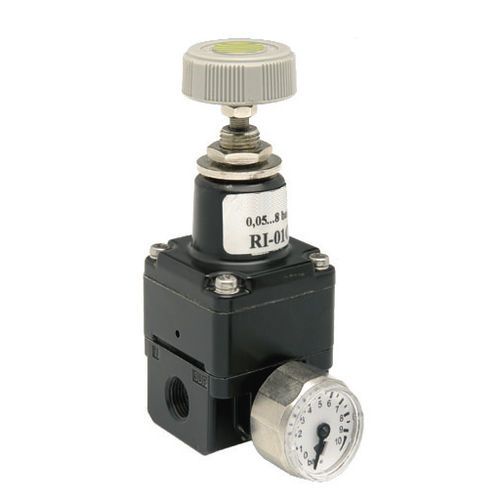

Compressed air pressure regulator RI

for inert gasesmembranesingle-stage

Description Diaphragm précision pressure regulator of very small design and low air consumption Media compressed air or non-corrosive gases Supply pressure max. 10 bar Accuracy response sensitivity: ± 0.2 % FS reproducibility: - ± 0,5 % FS Air consumption max. 5 l/min at 10 bar supply pressure. Consumption dépends on supply pressure. Adjustment by handwheel with locknut Relieving function relieving Gauge port GVs on both sides of the body, screw plug supplied Mounting position any Température range 0 °C to 60 °C / 32 °F to 140 °F Material Body: zinc die-cast Elastomer: NBR/Buna-N Inner valve: stainless Steel and brass
