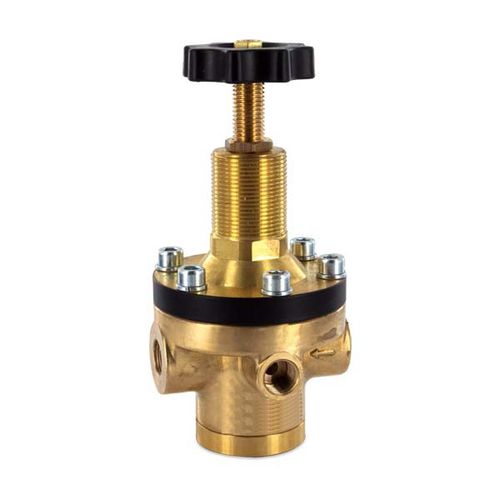

Water pressure regulator R286for compressed airfor inert gasespiston
Add to favorites
Compare this product
Characteristics
- Product
- for water, for compressed air, for inert gases
- Technology
- piston
- Number of stages
- single-stage
- Material
- brass
- Applications
- high-pressure, industrial, pneumatic
- Other characteristics
- rugged
- Pressure
Max.: 50 bar
(725.19 psi)60 bar
(870.23 psi)Min.: 0.5 bar
(7.25 psi)- Flow
Max.: 300 m³/h
(10,594.4 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
Description
Piston-operated pressure regulator of solid design, completely made of brass.
For inlet pressure up to 60 bar.
Media
compressed air. non-corrosive gases or liquids
Supply pressure
max. 60 bar. for liquids Apmax = 25 bar
Adjustment
by handwheel. T-handle or hexagonal spindle, with locknut
Relieving function
relieving. optionally non-relieving
Gauge port
G1/4 on both sides of the bocfy. one screw plug supplied
Mounting position
any
Inlet filter - stainless Steel. 500 pm
Température range
-10 °C to 90 °C/ 14 °F to 194 °F
Material
Body: - brass -
Intermediate ring: brass at G1/4. anodized aluminium at - G1
Elastomer: NBR/Buna-N -
Inner valve: brass
