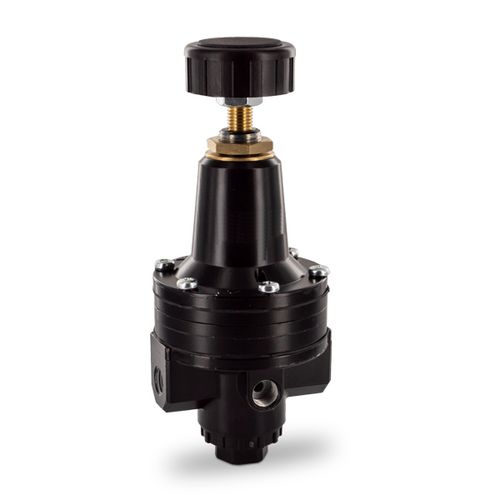

Regulator provides precision regulation in high flow and high relief applications. A sensitive rolling diaphragm and balanced inner valve ensure constant outlet pressure even with changing supply pressure and flow fluctuations. The regulator is silicone-free and suitable for panel mounting.
Media
oil-free and 5 pm filtered compressed air or non-corrosive gases
Supply pressure
max. 16 bar
Accuracy
at supply pressure change from 2 bar to 7 bar: < 6 mbar pressure déviation
at volume flow change from 0 l/min to 20 l/min: < 20 mbar pressure déviation
response sensitivity: < 4 mbar
Air consumption
<1.5 l/min at P,= 5 bar. < 2 l/min at P,= 7 bar. < 4 l/min at P,= 10 bar. < 1% of volume flow
Adjustment
by handwheel with bcknut. suitable for panel mounting
Relieving function
relieving
Relief capacity
700 l/min at 6 bar outlet and 0.35 bar overpressure above setpoint
Gauge port
G1/4 on both sides of the body. one screw plug supplied
Mounting position any
Température range
0 °C to 60 °C / 32 °F to 140 °F, for appropriately conditioned compressed air down to -35 °C / -31 °F
Material
Body: zinc die-cast -
Bastomer: NBR/Buna-N
