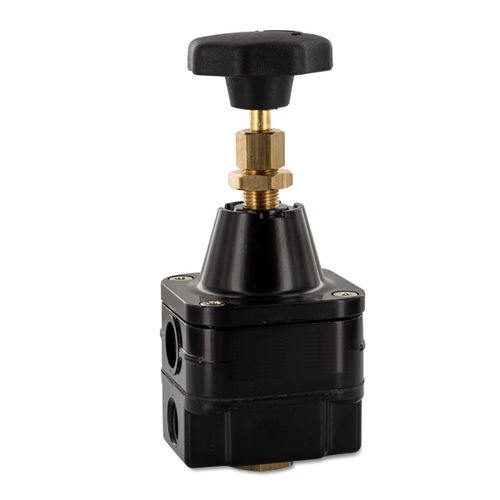

Compressed air pressure regulator 11-818

single-stagedie-cast zincprecision

Description Précision pressure regulator designed for précisé pressure control in the event of changes in flow and supply pressure. Due to constant bleed slight blow-off sounds existing. Media dry, oil-free and 25 pm filtered compressed air Supply pressure max. 8 bar for 0.02...0.5 bar, - max. 10 - bar for 0.07...4 bar, max. 14 bar for 0.4...10 bar Accuracy at varying supply pressures: < 20 mbar pressure déviation at varying volume flows: < 30 mbar pressure déviation at 5 °C / K température variation: < 3 - mbar pressure déviation Air consumption max. 2 l/min, subject to outlet pressure Adjustment by handwheel for panel mounting, optionally by spindle Relieving function relieving, 3 mm exhaust diameter Gauge port G1/4 on both sides of the body, optionally without gauge port - Mounting position any Température range 0 °C to 70 °C / 32 °F to 158 °F. for appropriately conditioned compressed air down to -30 °C / -22 °F Material Body: zinc die-cast - Inner valve: brass, plastic Elastomer: NBFVBuna-N
