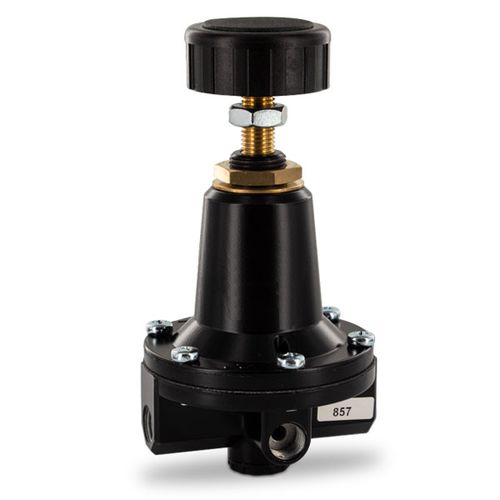

Compressed air pressure regulator R217for inert gasesmembranesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases
- Technology
- membrane
- Number of stages
- single-stage
- Material
- die-cast zinc
- Applications
- precision, industrial, for pneumatic applications
- Other characteristics
- high-precision
- Pressure
Max.: 16 bar
(232.06 psi)16 bar
(232.06 psi)Min.: 0.01 bar
(0.15 psi)- Flow
Max.: 600 l/min
(158.5 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Description
Diaphragm pressure regulator with good régulation accuracy at varying volume flow.
Media
compressed air or non-corrosive gases
Supply pressure
max. 16 bar
Accuracy
response sensitivity: < 350 mbar
Air consumption
without constant bleed
Adjustment
by handwheel with locknut, suitable for panel mounting
Relieving function
relieving
Gauge port
G1/4 on both sides of the body. one screw plug supplied
Mounting position
any
Température range
0°C to 80 °C / 32 °F to 176 °F
Material
Body: zinc die-cast -
O-ring:NBR/Buna-N
Spring cage: zinc die-cast - Bottom screw: POM
Diaphragm:FKM
