Description

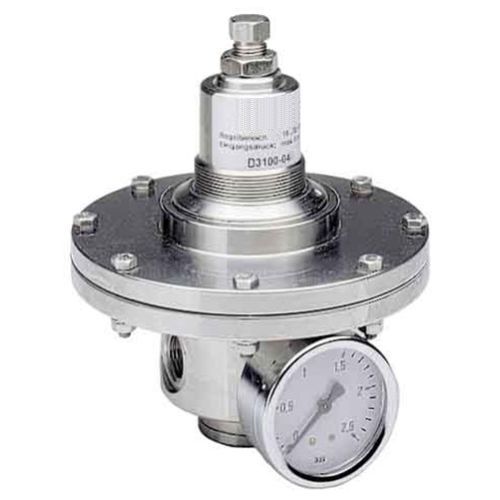

The diaphragm back pressure regulator protects compressed air devices from excessive pressure.
If the pressure setpoint is exceeded, overpressure is vented into the atmosphère until the setpoint is reached again. It is recommended to choose a pressure range as low as possible,
Media
compressed air, gases
System pressure max. 6 bar
Adjustment
by adjusting screw for D3100-04 to - 1A, with locknut by T-handle for D3100-12 and -16. with locknut
Gauge port
G1/4 on both sides of the body. screw plugs supplied -
Mounting position any
Température range
0 °C to 80 °C / 32 °F to 176 °F, FKM or EPDM
0 °C to 130 °C/ 32 °F to 266 °F. high température version
for appropriately conditbned compressed air down to -20 °C / -4 °F
or low température version down to -40 °C / -40 °F
Material
Body: stainless Steel 316L, material no. 1.4404
Diaphragm: NBR/Buna-N with PTFE coating -
O-rings: FKM, optionally EPDM
Imer valve: stainless Steel 316L, material no. 1.4404
