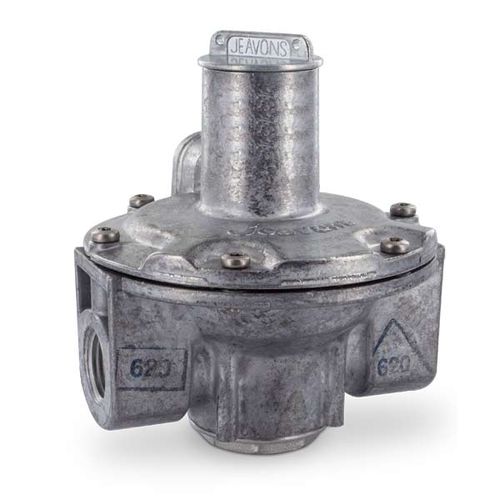

Compressed air pressure regulator RGDJfor inert gasesmembranesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases
- Technology
- membrane
- Number of stages
- single-stage
- Material
- aluminum
- Applications
- precision, industrial, low-pressure, pneumatic
- Other characteristics
- high-precision, pilote-operated, ultra low-pressure
- Pressure
Max.: 160 mbar
(2.32 psi)400 mbar
(5.8 psi)Min.: 2 mbar
(0.03 psi)- Flow
Max.: 2,000 l/min
(528.34 us gal/min)Min.: 200 l/min
(52.83 us gal/min)- Orifice diameter
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)
Description
Description
Highly sensitive low pressure regulator with inlet pressure compensation for high précision régulation.
Zéro shut-off prevents outlet pressure from increasing.
Media
compressed air or non-corrosive gases. dryly biogas H2S < 200 ppm
Supply pressure
max. 400 mbar
Air consumption
without constant bleed
Adjustment
manual by turning the spindle under the cover of the spring cage
Relieving function
non-relieving
Accuracy
at maximum volume flow: < 20% FS pressure déviation
Gauge port
none as standard, optionally gauge port G1/4 on one side from size R3/4 on
Mounting position
any,preferably bonnet upwards
Température range
-20 °C to 70 °C / -4 °F to 158 °F
Material
Body: aluminium - Inner valve: aluminium and plastic
Elastomer: NBR/Buna-N
