Water pressure regulator R039

for airfor inert gasesfor oxygen

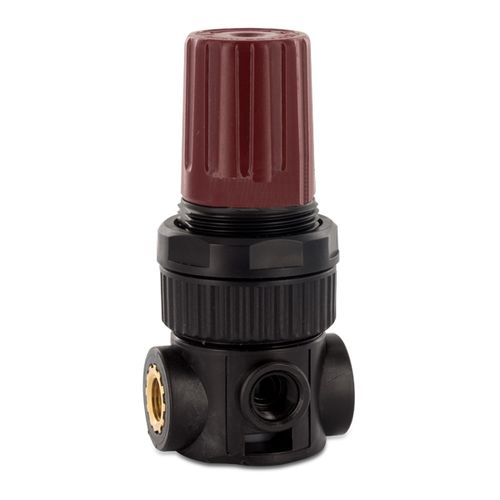

Description Diaphragm miniature pressure regulator of small and lightweight design. The regulator has increased accuracy due to a rolling diaphragm and a piston compensated to inlet pressure. Media compressed air, non-corrosive gases or liquids Supply pressure max. 16 bar Air consumption without constant bleed - R039-F with max. 3 l/min air consumption Adjustment by plastic knob with snap-lock Relieving function relieving for compressed air, - red adjusting knob non-relieving for liquids, - black adjusting knob Gauge port G'/s on both sides of the body, screw plugs supplied Mounting position any Température range 0 °C to 50 °C / 32 °F to 122 °F for NBR/Buna-N Material Body: POM with brass thread insert Elastomer: NBR/Buna-N Inner valve: brass
