Description

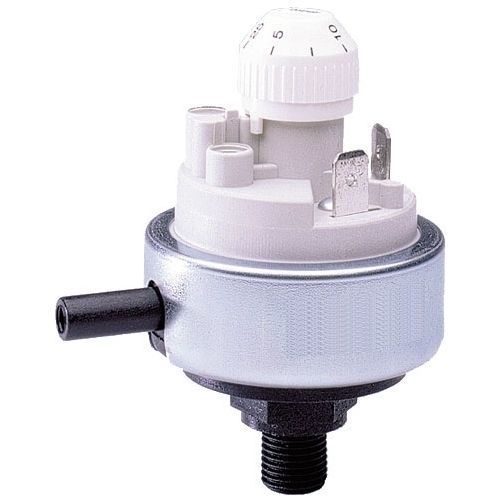

Adjustabte pressure switcli for monitoring pressure, vacuum and differentiaJ pressure.
From the 6 bar device on two tums ol the adjusting knob are necessary for the whote adjustment range, so tlie scale on the knob is inappropriate.
Media
compressed air. non-corrosive gases or liquids
Over pressure
see chart
Switch contact
SPDT switcli with silver contact optionaliy gold contact
Contact load
2 A at 24 V DC. 6 A at 250 V AC
Electrical connector
AMP spade terminal. 6.3 x 8 mm. according to DIN 46244
Hystérésis see chart
Life cycle
10% switching cycles
Vibration résistance 20 g
Certifications
VDE. TUV design test, optionaliy Atex
Switching time 30 ms
Mounting position
any. but indication needed for switcli point < 100 mbar
Protection class IP 65 w/ coupling Socket
Température range
-20 °C to 85 °C/ -4 °F to 185 °F for NBFVBuna-N. EPDM and polyamide, up to 130 °€ / 266 eF for FKM
Material
Body: Zytel. a high-quality polyamide
Elastomer - NBfVBuna-N. optionaliy EPDM. FKM or spécial FKM (saturated steam-résistant)
Pressure connection: brass. at DSP-W polyamide, optionaliy stainless Steel or PVDF
