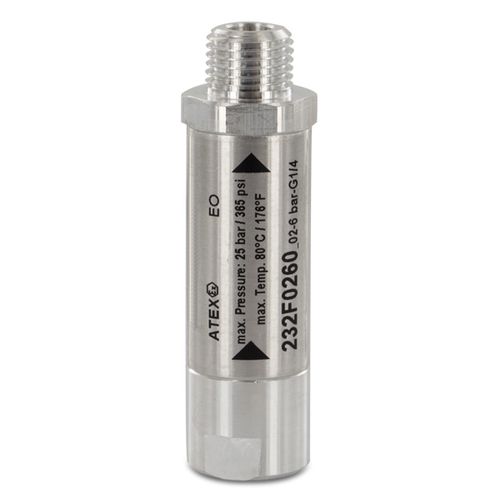

Compressed air pressure regulator 232
for inert gasessingle-stagealuminum

compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air, for inert gases
Number of stages
single-stage
Material
aluminum
Applications
industrial, for pneumatic applications
Other characteristics
compact, miniature, line, explosion-proof
Pressure

25 bar
(362.59 psi)

Flow

Min.: 500 l/min
(132.09 us gal/min)

Max.: 4,600 l/min
(1,215.19 us gal/min)

Description

Description In-Line pressure regulator with factory-set outlet pressure, reducing from e.g. 15 bar to 6 bar. With an outlet pressure tolérance of only ±10% ^it is especially suitable for nailing machines. Benefits •Higher safety through lower pressure. Tools and equipment protected agamst pressure damages. •Cost réduction through substantially reduced air consumption. Longer service life. •Noise réduction for tools. Media compressed air or non-corrosive gases Supply pressure max. 25 bar Adjustment Select the pressure regulator according to the desired outlet pressure. The outlet pressure cannot be subsequently adjusted. This safeguards against tampering. Relieving function relieving at removal of supply pressure Température range 0°C to 80 °C / 32 °F to 176 °F Material Body: aluminium Elastomer: NBR/Buna-N
