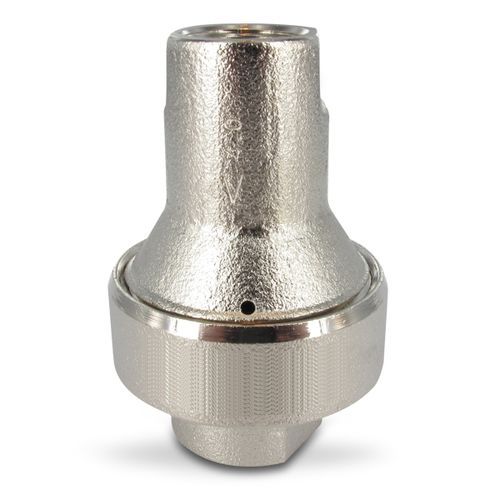

Water pressure regulator 239for oilfor compressed airfor inert gases
Add to favorites
Compare this product
Characteristics
- Product
- for water, for oil, for compressed air, for inert gases, for oxygen
- Number of stages
- single-stage
- Material
- nickel-plated brass
- Applications
- industrial, pneumatic
- Other characteristics
- compact, miniature, line
- Pressure
Max.: 18 bar
(261.07 psi)18 bar
(261.07 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 800 l/min
(211.34 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
In-Line pressure regulator with factory-set outlet pressure, reducing from e.g. 10 bar to 5 bar.
The regulator is suited for basic pressure control only with an outlet pressure tolerance
of approx. ±10%. The outlet pressure cannot be subsequently adjusted. This safeguards against tampering.
Description 239A: regulator for liquids, compressed air and non-corrosive gases
Description 239M: medical industry and pharmaceutics
Application: water, hydraulik and sprinkler systems, cooler, cleaning systems
Supply pressure:
max. 10 bar for liquids,
max. 18 bar for compressed air and non-corrosive gases
Temperature range: 0 °C to 60 °C / 32 °F to 140 °F
Material
Body: nickel-plated brass
Inner parts: brass
Elastomer: NBR/Buna-N for 239A, FKM for 239M
