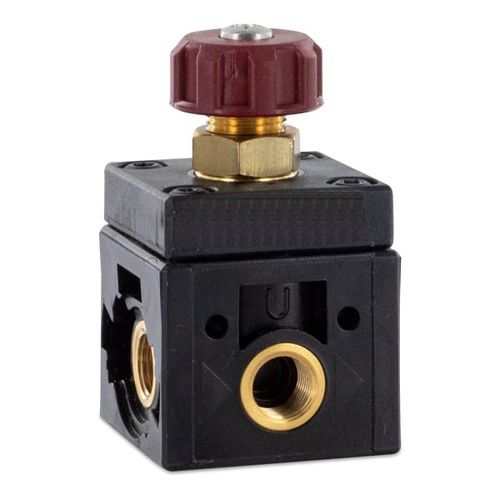

Water pressure regulator RB

for compressed airfor inert gasesdiaphragm

Description Diaphragm pressure regulator, with joint pressure supply. Modular assembly without need for double nipples or other fittings. Outlet at rear side, gauge port in the front. Media: compressed air or non-corrosive gases Supply pressure: max. 16 bar, max. 10 bar for R035 Air consumption: without constant bleed Adjustment: by plastic knob with snap-lock, R035 without snap-lock Relieving function: relieving, optionally non-relieving Gauge port: G1∕8 at R035 and RB-02, G¼ at all others Mounting: position any Temperature range: 0 °C to 50 °C / 32 °F to 122 °F Material Body: zinc die-cast, POM at R035 Adjusting knob: plastic Elastomer: NBR/Buna-N Inner valve: brass Thread insert: brass at R035
