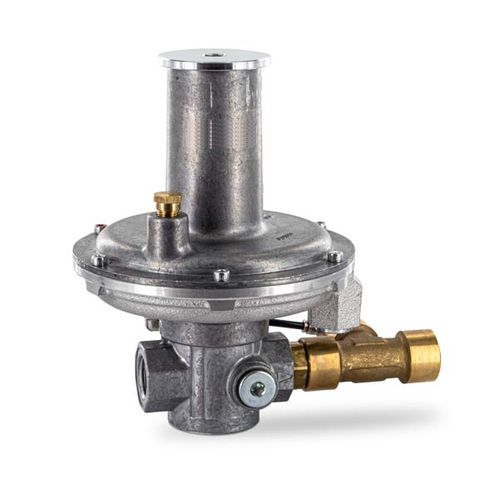

Compressed air pressure regulator RGB4
for inert gasesspringsingle-stage

compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air, for inert gases
Technology
spring
Number of stages
single-stage
Material
aluminum
Applications
industrial, low-pressure, pneumatic
Other characteristics
rugged, ultra low-pressure
Pressure

Min.: 5 mbar
(0.07 psi)

Max.: 350 mbar
(5.08 psi)

4,000 mbar
(58.02 psi)

Flow

Min.: 42 m³/h
(1,483.22 ft³/h)

Max.: 336 m³/h
(11,865.73 ft³/h)

Orifice diameter

Min.: 15 mm
(0.591 in)

Max.: 40 mm
(1.575 in)

Description

Description Highly sensitive low pressure regulator which can also be used as volume booster. With inlet pressure compensation for high precision regulation, high flow and safety diaphragm for added security. Zero shut-off prevents outlet pressure from increasing. Media: compressed air or non-corrosive gases Supply pressure: max. 4 bar Air consumption: without constant bleed Adjustment: manual by turning the spindle under the cover of the spring cage Relieving function: non-relieving Accuracy: max. 20% pressure drop at full flow Gauge port: none as standard, optionally gauge port G1/4 on one side at R1/2" and R1", standardly G1/4 at R1-1/2" Mounting position: any, preferably bonnet upwards Temperature range: -15 °C to 60 °C / 5 °F to 140 °F Material Body: aluminium Inner valve: aluminium and plastic Elastomer: NBR/Buna-N
