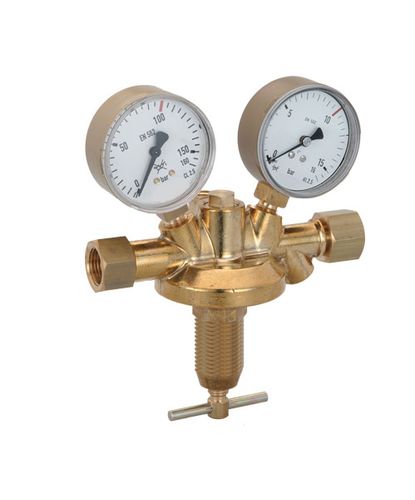

Compressed air pressure regulator RHfor inert gasesfor oxygenpropane
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases, for oxygen, propane, for acetylene, for nitrogen, for CO2, for hydrogen, for natural gas
- Technology
- spring
- Number of stages
- single-stage
- Material
- brass
- Applications
- high-pressure, industrial, for pneumatic applications, cylinder
- Other characteristics
- with pressure gauge, rugged, with filter
- Pressure
Max.: 60 bar
(870.23 psi)300 bar
(4,351.13 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 450 m³/h
(15,891.6 ft³/h)Min.: 50 m³/h
(1,765.73 ft³/h)
Description
Main pressure regulator up to 300 bar with G1/2 connection thread.
A filter at the inlet port protects against contamination.
Media: compressed air, oxygen or different gases on request
Supply pressure: see chart, max. 300 bar
Connections: G1/4 to G1/2, optionally according to DIN 477
Adjustment:
- by T-handle for RH-..7.510 / 520 /525
- by hexagonal spindle (spanner size 20 mm) for RH-..7.545 / 565
Gauge port:
All regulators are equipped with both one supply pressure gauge and one outlet pressure gauge.
Leakage rate: 10-6 mbar l/s
Compensation: without supply pressure variation compensation
Temperature range: -30 °C to 60 °C / -22 °F to 140 °F
Body: brass
O-rings: NBR/Buna-N
Spring cage: brass
Diaphragm: 65NBR4550, stainless steel for oxygen > 20 bar
