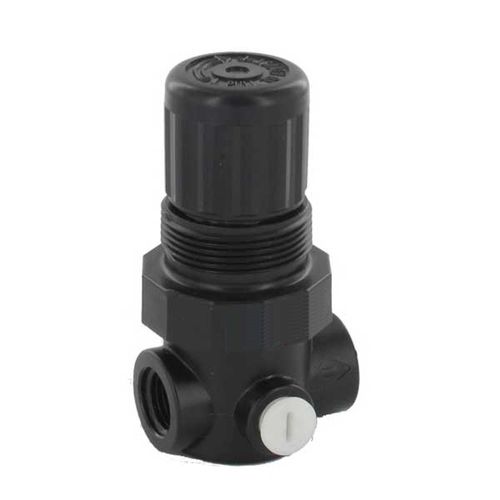

Potable water pressure regulator R91
for compressed airfor inert gasesmembrane

potable water pressure regulator
potable water pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for potable water, for compressed air, for inert gases
Technology
membrane
Number of stages
single-stage
Material
POM
Applications
industrial, for medical applications, high-purity, for pneumatic applications, for hygienic applications, for water systems, sanitary
Other characteristics
compact, miniature
Pressure

Min.: 0.1 bar
(1.45 psi)

Max.: 8.5 bar
(123.28 psi)

10 bar
(145.04 psi)

Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 380 l/min
(100.39 us gal/min)

Description

Diaphragm miniature pressure regulator of small and lightweight design. All fluid-contact parts of R91-..K are approved by the FDA. Application: Area food industry and water circulation, e.g. for dialysis devices Media: compressed air, non-corrosive gases, deionized water or other liquids. Supply pressure: max. 10 bar Adjustment: by plastic knob with snap-lock Relieving function: non-relieving for drinking water (FDA), relieving for compressed air Gauge port: G1∕8 on both sides of the body Mounting postion: any Temperature range: 0 °C to 60 °C / 32 °F to 140 °F Material for drinking water Body: acetal Elastomer: acetal and nylon-reinforced nitrile, NBR/Buna-N Valve+o-ring: stainless steel and EPDM, FDA-approved Material for compressed air Body: acetal Elastomer: acetal and nylon-reinforced nitrile, not FDA-approved Valve+o-ring: brass, nitrile and NBR/Buna-N
