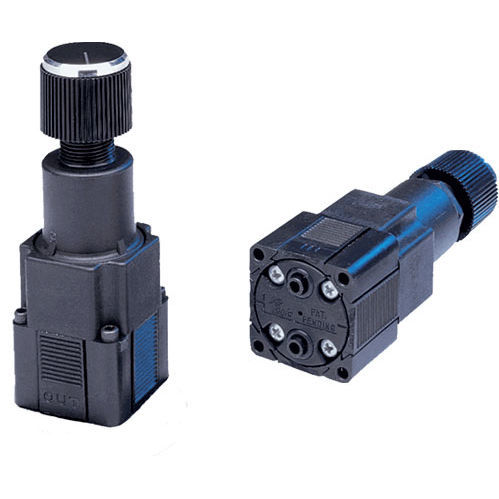

Compressed air pressure regulator R6 - M5000

for inert gasessingle-stageglass fiber-reinforced plastic

Pressure regulator R6: Design as R7 but for bottom-sided flange assembly via fittings and o-rings made of NBR/Buna-N. Mounting through four screws (M3) with extremely small screw heads. Pressure regulator RP: This model guards against unauthorised tampering of pressure. Alternatively available with preset pressure. The pressure is to be set between 30 mbar and 2.8 bar. Its headroom is reduced to 49 mm. Diverter block M5000: M3000 features four ports sideways and one on top. All ports can be provided with threads or blank slides, the ports sideways optionally with connector slides. Top cover: blank cover (B) with G1/8 thread (1) with G1/4 thread (2) with M5 thread (10-32 UNF) (0) Connector slide: to join two units and without through hole (C) with through hole (U) Assembly: After loosening the bottom screw any placements of threads,connector and blank slides are possible. Sealing results from o-rings made of NBR/Buna-N. Temperature range: 4 °C to 70 °C / 39.2 °F to 158 °F Body: glass-fiber reinforced Celcon Inner valve: stainless steel and Celcon Elastomer: NBR/Buna-N
