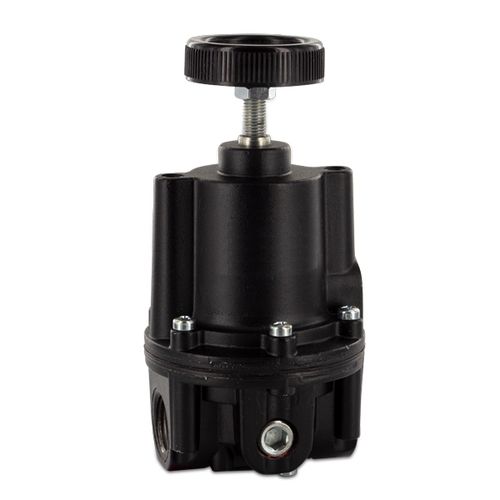

Compressed air pressure regulator 10

for inert gasesmembranesingle-stage

The diaphragm pressure regulator provides precision regulation in high flow applications. A balanced inner valve, sensitive rolling diaphragm and carefully positioned aspirator tube ensure constant outlet pressure even with changing supply pressure and flow fluctuations. Media: compressed air or non-corrosive gases Supply pressure: max. 35 bar Accuracy: response sensitivity = < 2 mbar Air consumption: max. 6 l/min, subject to outlet pressure Adjustment: by handwheel with locknut Relieving function: relieving, optionally non-relieving Relief capacity: 150 l/min at 1.5 bar outlet and 0.35 bar overpressure above setpoint Gauge port: G1/4 on both sides of the body, optionally 1/4"NPT Mounting position: any Temperature range: 0 °C to 90 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40 °F Body: aluminium die-cast Inner valve: stainless steel and brass Elastomer: NBR/Buna-N, optionally FKM
