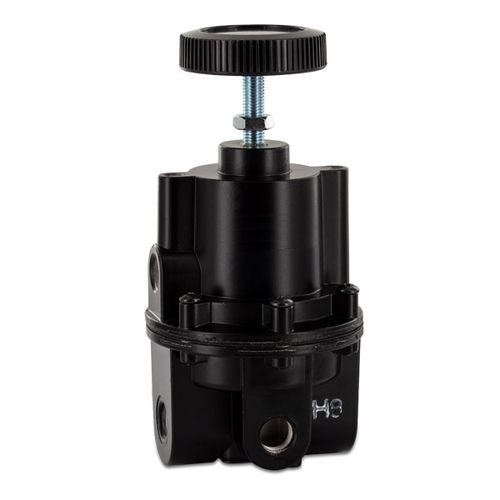

The diaphragm pressure regulator provides precision regulation in high flow applications.
A balanced inner valve, sensitive rolling diaphragm and
carefully positioned aspirator tube ensure constant outlet
pressure even with changing supply pressure and flow fluctuations.
Media: compressed air or non-corrosive gases
Supply pressure: max. 17 bar
Accuracy: response sensitivity = < 4 mbar
Air consumption: max. 6 l/min, subject to outlet pressure
Adjustment: by handwheel with locknut
Relieving function: relieving, optionally non-relieving
Relief capacity: 110 l/min at 1.5 bar outlet and 0.35 bar overpressure above setpoint
Gauge port: G1/4 on both sides of the body, optionally 1/4"NPT
Mounting position: any
Temperature range:
0 °C to 80 °C / 32 °F to 176 °F,
for appropriately conditioned compressed air down to -40 °C / -40 °F
Body: aluminium die-cast
Inner valve: stainless steel and brass
Elastomer: NBR/Buna-N
