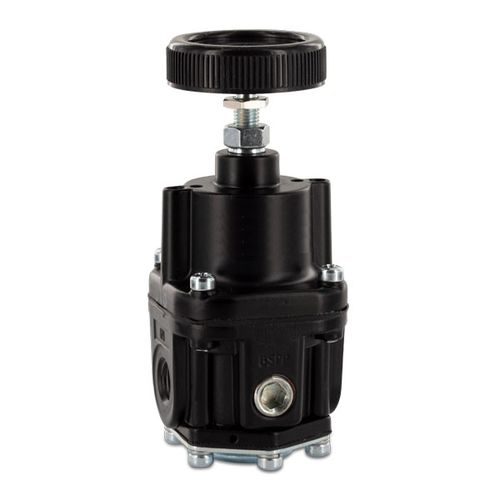

Compressed air pressure regulator R100
for inert gasesmembranesingle-stage

compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air, for inert gases
Technology
membrane
Number of stages
single-stage
Material
die-cast zinc
Applications
industrial, precision, for pneumatic applications
Pressure

18 bar
(261.07 psi)

Min.: 0.03 bar
(0.44 psi)

Max.: 10 bar
(145.04 psi)

Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 1,400 l/min
(369.84 us gal/min)

Description

Regulator provides precision regulation in high flow and high relief applications. A sensitive rolling diaphragm and balanced inner valve assure constant outlet pressure even with changing supply pressure and flow fluctuations. Media: compressed air or non-corrosive gases Supply pressure: max. 18 bar Accuracy: - at supply pressure variation of 7 bar = < 7 mbar pressure deviation - response sensitivity = < 2 mbar Air consumption: without constant bleed Adjustment: by handwheel with locknut Relieving function: relieving Relief capacity: 200 l/min at 1.5 bar outlet and 0.35 bar overpressure above setpoint Gauge port: G1/4 on both sides of the body, screw plugs supplied Mounting position: any Temperature range: 0 °C to 80 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40 °F Body: zinc die-cast Inner valve: aluminium, brass and neoprene Elastomer: NBR/Buna-N
