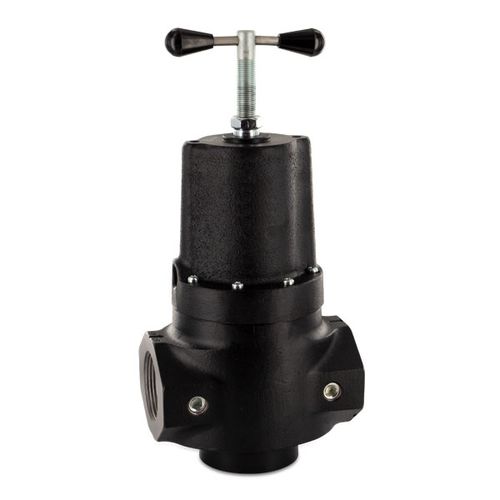

Compressed air pressure regulator R102

for inert gasesmembranesingle-stage

Provides precision regulation in high flow and high relief applications. A sensitive rolling diaphragm and balanced inner valve assure constant outlet pressure even with supply pressure and flow fluctuations. Media: compressed air or non-corrosive gases Supply pressure: max. 18 bar, optionally max. 35 bar Accuracy: response sensitivity = < 2 mbar Air consumption: 0.5% of volume flow, max. 15 l/min Adjustment: by T-handle with locknut Relieving function: relieving, optionally non-relieving Relief capacity: 1200 l/min at 1.5 bar outlet and 0.35 bar overpressure above setpoint Gauge port: G1/4 for outlet pressure Mounting position: any Temperature range: 0 °C to 90 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40 °F Body: aluminium die-cast Elastomer: NBR/Buna-N, optionally FKM at 35 bar version (option X62) Inner valve: stainless steel, brass, aluminium and steel
