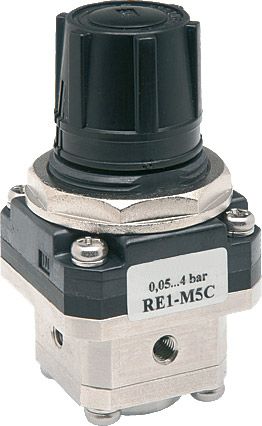

Diaphragm pressure regulator made of stainless steel suitable for pure gases and panel mounting.
Media: compressed air or gases
Supply pressure: max. 10 bar
Accuracy:
setting_accuracy = < 0.3% FS
Repeatability = < 1% FS
Air consumption:
max. 0.5 l/min, subject to outlet pressure
The compressed air can be directly transmitted into the clean room without any piping.
Adjustment: by plastic knob with snap-lock
Relieving function: relieving
Mounting position: any
Gauge port: M5 or G1/8 on both sides of the body, depending on connection thread, screw plugs supplied
Clean room condition:
Cleaned, assembled, inspected and sealed in a class 10,000 environment. All parts without oil use.
HCFC141b ultrasonic cleaning of all fluid-contact parts.
Temperature range: 0 °C to 60 °C / 32 °F to 140 °F
Body: stainless steel 316, material no. 1.4436
Elastomer: FKM
Spring cage: PPS plastic
Valve seat: PTFE
