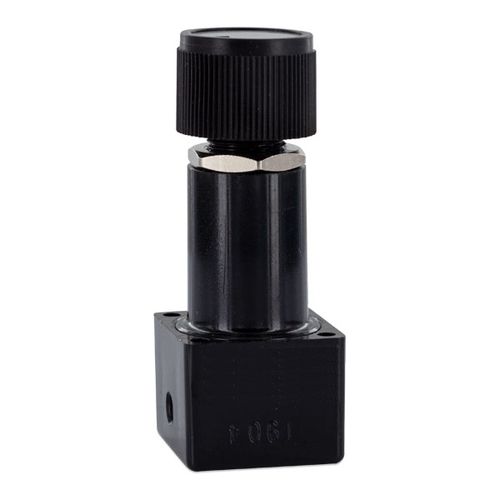

Compressed air pressure regulator V800 - V900
for inert gasesmembranesingle-stage

Compressed air pressure regulator - V800 - V900 - ALPHA AUTOMATISMES Sarl - for inert gases / membrane / single-stage

Add to favorites

Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Product

for compressed air, for inert gases

Technology

membrane

Number of stages

single-stage

Material

polysulfone

Applications

industrial, precision, for pneumatic applications, for vacuum

Other characteristics

compact, miniature, high-performance

Pressure

Max.: 0 mbar
(0 psi)

Min.: -850 mbar
(-12.33 psi)

Flow

Max.: 22 l/min
(5.81 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Description

Miniature precision vacuum regulator with diaphragm and high outlet pressure constancy, small dimensions, low weight. 20-turn hysteresis-free adjustment range allows sensitive pressure setting. Media: compressed air or non-corrosive gases Supply pressure: max. -1000 mbar Accuracy: at supply pressure variation of 170 mbar = < 4 mbar pressure deviation at supply pressure removal/reapplication = < 7 mbar pressure deviation setting accuracy = < 2.5 mbar Air consumption: 0.3 l/min at -1000 mbar supply pressure Adjustment: by plastic knob, adjusting screw or preset Gauge port: not available Mounting position: any Temperature range: 4 °C to 66 °C / 39 °F to 151 °F Body: polysulfone Inner valve: stainless steel and acetal Elastomer: NBR/Buna-N
