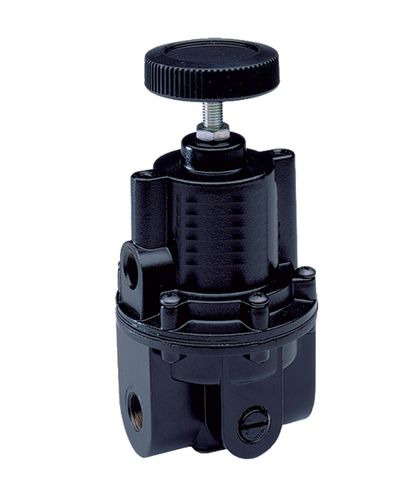

Compressed air pressure regulator V170
for inert gasesmembranesingle-stage

compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air, for inert gases
Technology
membrane
Number of stages
single-stage
Material
aluminum
Applications
industrial, precision, pneumatic, for vacuum
Other characteristics
high-precision
Pressure

Max.: 0 mbar
(0 psi)

Min.: -990 mbar
(-14.36 psi)

Flow

Max.: 20 m³/h
(706.29 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

High precision diaphragm vacuum regulator with high flow capacity. A balanced vacuum valve minimizes the effects of variation. Media: compressed air or non-corrosive gases Accuracy response: sensitivity < 2 mbar Adjustment: by handwheel with locknut Gauge port: G¼ on both sides of the body, screw plugs supplied Mounting position: any Temperature range: 0 °C to 90 °C / 32 °F to 194 °F, for appropriately conditioned compressed air down to -40 °C / -40°F Body: aluminium die-cast Elastomer: NBR/Buna-N, optionally FKM Inner valve: stainless steel, brass, aluminium and steel
