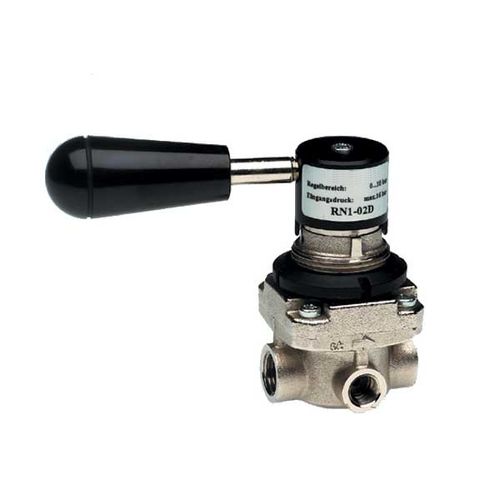

Compressed air pressure regulator RNfor inert gasesmembraneball
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for inert gases
- Technology
- membrane, ball
- Number of stages
- single-stage
- Material
- nickel-plated brass, aluminum
- Applications
- industrial, for pneumatic applications
- Other characteristics
- proportional
- Pressure
Max.: 10 bar
(145.04 psi)16 bar
(232.06 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 300 l/min
(79.25 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Lever mechanism allows the diaphragm regulator to operate as a proportional converter with pneumatic outlet signal. Moving the lever by 141° (RN1) or 32° (RN2) allows full-range adjustment of regulated pressure, e.g. from 0 to 7 bar.
Media: compressed air or non-corrosive gases
Supply pressure:
RN1 max. 16 bar,
RN2 max. 10 bar
Adjustment:
RN1 by side lever,
RN2 by vertical lever
RN1 0…141° angle range,
RN2 2x 0…32° angle range to each side
RN1 without spring reset,
RN2 with spring reset in centre position
Relieving function: relieving
Gauge port: G1/8 on both sides of the body, screw plugs supplied
Mounting position: any
Temperature range:
RN1 -40 °C to 80 °C / -40 °F to 176 °F
RN2 -20 °C to 70 °C / -4 °F to 158 °F
Body:
RN1 nickel-plated brass,
RN2 anodized aluminium
Elastomer: NBR/Buna-N
