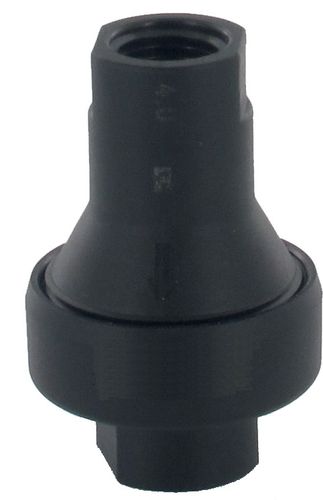

Compressed air pressure regulator 239K
for potable watersingle-stagethermoplastic

Compressed air pressure regulator - 239K - ALPHA AUTOMATISMES Sarl - for potable water / single-stage / thermoplastic

Add to favorites

Compare this product

Go to the ALPHA AUTOMATISMES Sarl website for more information

Characteristics

Product

for potable water, for compressed air

Number of stages

single-stage

Material

polyamide, thermoplastic, glass fiber-reinforced plastic

Applications

for medical applications, for analytical instruments, for pneumatic applications, high-purity, for water systems, for hygienic applications, sanitary

Other characteristics

compact, line, miniature

Pressure

Min.: 1 bar
(14.5 psi)

Max.: 8 bar
(116.03 psi)

10 bar
(145.04 psi)

Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 10 l/min
(2.64 us gal/min)

Description

In-Line pressure regulator with factory-set outlet pressure, reducing from e.g. 10 bar to 5 bar. The outlet pressure cannot be subsequently adjusted. This safeguards against tampering. Description regulator for drinking water conforms to the NSF 61 and NSF 372 drinking water directives Application: applications areas such as drinking water, food and medical industry Supply pressure: max. 10 bar Accuracy: ± 0.3 bar, for compressed air P1 = 6 bar and 10 l/min Temperature range: 4 °C to 60 °C / 39.2 °F to 140 °F Body: Grivory® GV-5 FWA Inner parts: Stainless steel DIN 1.4404 / AISI 316L Elastomer: FPM Certified FDA
