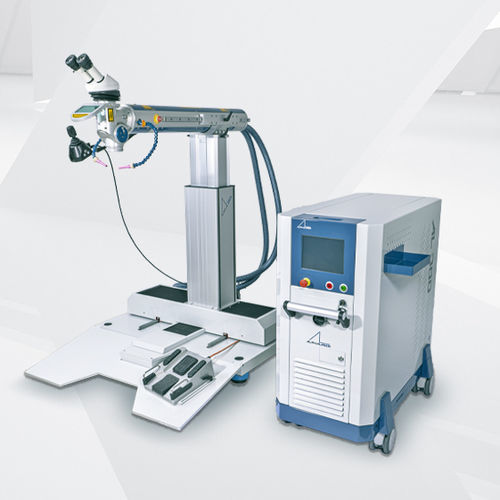

Pulsed laser system AL-IN

solid-stateinfraredfor welding

The AL-IN is composed of the Nd:YAG laser source AL combined with the X, Y, Z motion system AL-T basic and is available with 120, 150, 200 or 300 W. You can use the integrated touch panel to teach surfaces, access apps for rotary components or to control an optional wire feed system. The angle of the touch panel can be adjusted or it can even be removed completely from the holder for free placement close to the welding process. The system is characterized by its great flexibility. The parts to be welded can be positioned independently from the movement system because a wide variety of work tables can be placed in front of the lifting column. - Or you can weld directly on the pallet truck or pallet. This is possible because the resonator can be turned to the side or back (nearly 360°). The resonator, which sits in a slide rail, can also be placed far forward. This gives you the flexibility to weld small and large workpieces. Optionally we supply a fixed table top for the lifting column. The special feature about the AL-IN is that it is not the workpiece that is moved, but the resonator. THE AL-IN ALSO OFFERS EXPANSION OPTIONS. OPTIONALLY YOU GET • Our turn and tilt optics • The patented multifunction foot switch • An Ergo wedge • an axis of rotation • and a wire feed system Your benefits at a glance: • Can be used flexibly • Robust • Powerful • Inexpensive • And expandable with many options
