Laser hardening line AL-ROCK

automatic

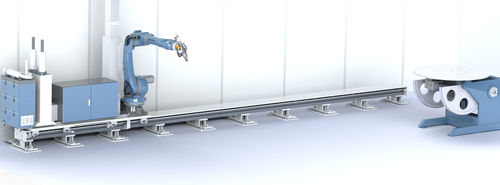

The ALPHA LASER system AL-ROCK is a flexible stationary robot system with up to 16 synchronized axes for the surface hardening of metal parts on many different components, or for automated powder deposition welding. Only one control is required to control all axes, which makes the operation of the hardening system - also with the option laser cladding - very easy and quick to learn. Components of various sizes can be processed: from small to very long. A ROBOT SYSTEM ACCORDING TO YOUR NEEDS The robot system is put together according to your needs. You have the choice • High-power laser (diode laser, fiber laser or disk laser) between 2 kW and 20 kW. More on request. • Different optics for laser beam hardening and laser powder deposition welding • Freely selectable industrial robots with a long range and optimal bearing load • Positioning systems with different bearing loads • Linear systems for floor or ceiling mounting • A cabin concept tailored to your needs • Automated powder deposition welding • And much more that we can only determine in a personal conversation. The hardening process is controlled safely and precisely by means of a temperature control, because the exposure time of the laser radiation determines the depth of penetration into the component. The surface temperature of the workpiece is permanently monitored and controlled. The track width of the laser beam varies from 5-120 mm, depending on the focusing optics. The spot parameters can be changed with the zoom lens while the process is running. Complex processing tasks are adapted dynamically.
