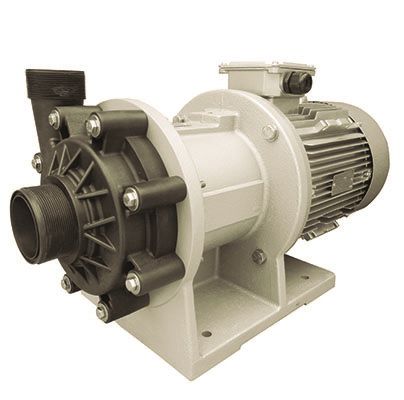

Centrifugal pump ADM 50watermagnetic-driveself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- magnetic-drive
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- polypropylene, PP, thermoplastic, PVDF
- Voltage
- 380 V
- Other characteristics
- mechanical
- Flow
51 m³/h
(1,801.048 ft³/h)- Head
34 m
(111'06" )- Power
7.5 ch, 10 ch
(7.5 hp, 10 hp)- Fluid temperature
60 °C, 90 °C
(140 °F, 194 °F)- Length
610 mm, 650 mm
(24 in, 26 in)- Weight
Max.: 82 kg
(180.78 lb)Min.: 72 kg
(158.73 lb)
Description
Mag drive centrifugal pumps series ADM 50 PP/PVDF aremade of thermoplastic materials
(Polypropylene and PVDF) and are suitable for high corrosive liquids.
Thanks to the innovative mag drive system, pumps model ADM 50 PP/PVDF reduce the risks of losses
and the maintenance costs. The transmission of the motion occurs through magnetic joints without
using mechanical seals. This guarantees the maximum safety and efficiency.
Catalogs
No catalogs are available for this product.
See all of ALPHADYNAMIC PUMPS (UK) LTD‘s catalogsOther ALPHADYNAMIC PUMPS (UK) LTD products

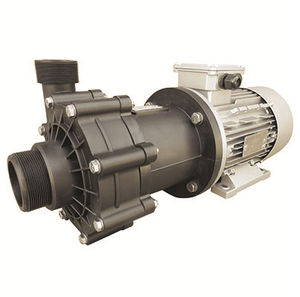

ADM – Magnetic Drive Centrifugal Pump
