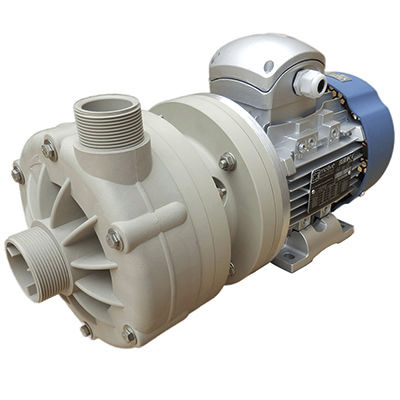

Centrifugal pump ADH 120waterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- plastic, polypropylene, PVDF
- Voltage
- 380 V
- Other characteristics
- mechanical, small, direct-drive, seal
- Flow
25 m³/h
(882.86667 ft³/h)- Head
16 m
(52'05" )- Power
2 ch
(2 hp)- Fluid temperature
60 °C, 90 °C
(140 °F, 194 °F)- Length
426 mm
(17 in)- Width
203 mm
(7.99 in)- Height
210 mm
(8.27 in)- Weight
16 kg, 17 kg
(35.27 lb, 37.48 lb)
Description
centrifugal pump with mechanical seal are made of plastic materials (Polypropylene and PVDF)
and are suitable for high corrosive liquids. They are operated by a direct-drive motor (max 3000 rpm).
Their special open-impeller design allows pumping even with very dirty liquids having apparent
viscosity up to 500 cps (at 20°C) and small suspended solids.
There are two versions available with different internal mechanical seal depending on use, A (lip seal)
and B (bellows seal.)
