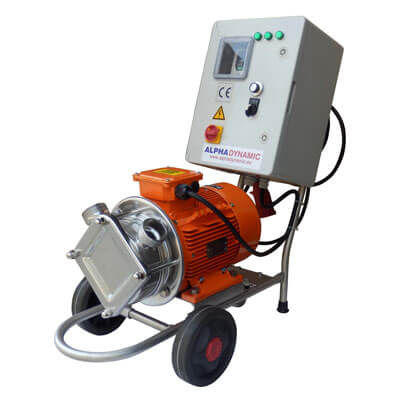

Water pump AD
electricimpellermobile

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Technology
impeller
Mobility
mobile
Domain
industrial
Applications
transfer, cleaning, replacement
Material
steel, EPDM
Other characteristics
mechanical, seal
Flow

56 m³/h
(1,977.62134 ft³/h)

Head

35 m
(114'09" )

Fluid temperature

90 °C
(194 °F)

Description

Volumetric Stainless Flexible Impeller Pumps, are mostly suitable for the transfer of delicate, fragile and viscous medium, also with solid parts in suspension. Features Immediate priming at a depth of up to 5 meter, even when running dry Flow reversibility Low speed motor, which ensures a gentle pumping action for delicate liquids Continuous and regular pumping action Capacity to handle viscous and solid-laden liquids High thickness steel (3/4mm) which ensures a higher mechanical and corrosion resistance, and therefore a longer life Monobloc pump casing casting for higher strength and a better seal The cleaning and replacement of the mechanical seal and of the impeller are incredibly simple as the pump can be taken apart with ease Flexible impeller made of entirely non-toxic synthetic rubber (Neoprene , NBR , EPDM) and resistant to different acids Mechanical seal made of INOX/ GRAPHITE/ NBR/EPDM or Tungsten/Tungsten/ NBR/EPDM
