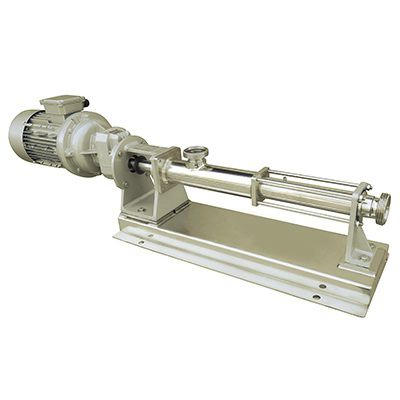

Paint pump ATLAS HBM 15
beverageoilelectric

paint pump
paint pump
Add to favorites
Compare this product


Characteristics

Fluid
paint, beverage, oil
Operation
electric
Technology
progressive cavity
Mobility
stationary, mobile
Domain
industrial, agriculture
Applications
transfer, service
Other characteristics
shear
Flow

Max.: 75 m³/h
(2,648.6 ft³/h)

Min.: 2 m³/h
(70.62933 ft³/h)

Pressure

4.5 bar
(65.267 psi)

Fluid temperature

100 °C
(212 °F)

Description

progressive cavity pumps are used to transfer products of low and high viscosity as well as products containing soſt particles. These food-grade progressice cavity pumps are also recommended for use with edible oils, wine,concentrates and beverages in general. They can also be used to transfer viscous food products. Featuresa Length Geometry Lower Sliding Velocity Higher Performance compared to classic geometry Minor service requirements Stability in pressure & flow due to longer sealing lines Improved flow characteristics Reduced Vibration, Turbulence, shear rates & pulsation Smooth and performance Improved volumetric, Mechanical & overall efficiency Block construction minimizes overall dimensions, providing a shorter pump length.Eliminates the need for coupling and cover protection. They are used for the transfer of: Low viscous and high viscous liquids, even paste-like Liquids with solid suspensions without damage Liquids that require gentle handling Most common industrial applications are: Food and Beverage industry like honey, sugar, pastes, oil, yogurt, juices, wine, must, chocolate, butter, pulp. Cosmetics industry like shampoo, cream, liquid soap Varnish and paint industry like ink, paints, glue Many other industrial sectors like mining, agriculture, shipping building and textile Mining industry Petrochemistry Agriculture

Catalogs

ATLAS HBM
ATLAS HBM
4 Pages
