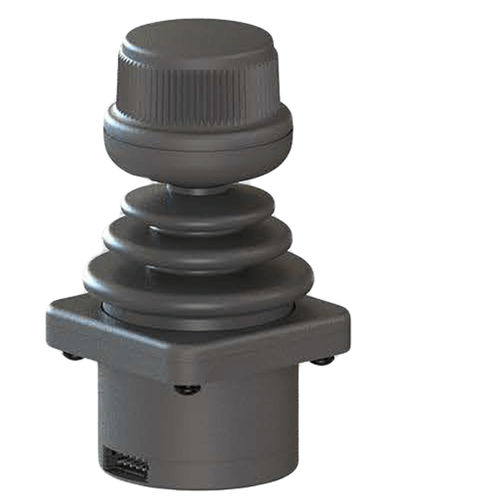

Analog joystick HE1

Hall effectmulti-axiscompact

Compact precision Hall effect Finger Joystick (1-axis, 2-axis or 3-axis) with plug & play USB output option and a large array of customization possibilities and easy mounting options. • Over 20 handle options and 6 mounting options • Available in 1, 2 or 3 axis configurations • With contactless hall effect sensor technology • Compact design (under 25mm below panel depth) • Protection up to IP67 grade • Pre-programmed proportional analog output or USB • Cable included with mating connector & pigtail wires This all-purpose finger-operated joystick comes with many different mounting and handle options to choose from. The operating principle is based on contactless Hall Effect technology which has a long life expectancy due to the absence of mechanical contacts. The HE1 joystick has an excellent return to centre accuracy and many pre-programmed electrical output options, including analog voltage, USB and Cursor Control. It is perfect for applications where the below panel space is limited due to its shallow profile and has an optional metal threading for easy mounting. Depending on the handle, the environmental protection is tested up to IP67. The USB output option is installed by plug & play and can operate as a standard USB 1.1 HID-compliant device without the need to install additional software. Cursor Control is also available, which is achieved by the joystick's microprocessor.
