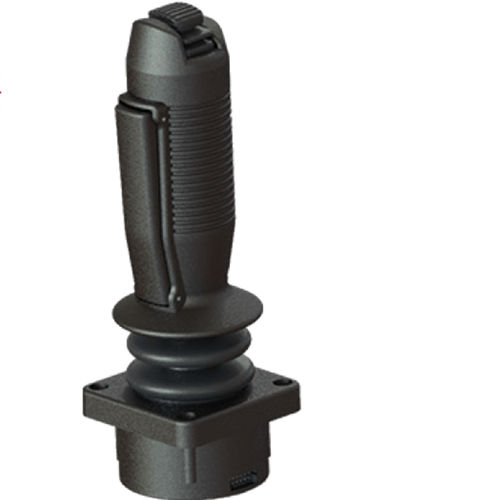

Analog joystick SG

single-axisHall effect2-axis

1-axis or 2-axis Hall effect joystick with redundant output and IP67 protection. This joystick can be equipped with several switches and a thumb controller. • Available in one-axis or two-axis • Over 25 different handle configurations • 8 dual independent output options • Redundant contactless Hall-effect technology • Standard IP67 above panel protection • Compact footprint (under 25mm below panel depth) This hand-operated multi-functional joystick is developed for applications that require an additional level of safety due to its redundant hall effect sensors that are present on each axis. The SG joystick comes with analog dual independent outputs (parallel or cross) and has many different configurations to choose from. All configurations are sealed to IP67 protection and will operate under harsh environments and temperatures. The available options include a deadman switch, rocker switch, push button switches and even a single-axis proportional thumbwheel or a 4-way hat switch on top of the knob. These customization abilities allow this joystick to be tailored to your specific requirements and application. Each joystick is supplied with all the necessary mounting hardware and an electrical cable.
