Multi-turn potentiometer 12HP

manualwire-woundwire-wound

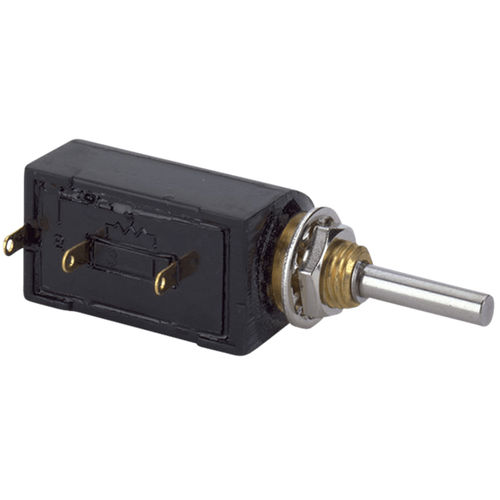

12HP Multi-turn Potentiometer Wirewound (Bushingmount) with metric dimensions About the 12HP Multi-turn Potentiometer The 12HP is a small multi-turn potentiometer with an outer diameter of 13mm. Pin terminals and rear lug terminals are also available in addition to standard lug terminals. Bushingmount type With lug terminals 5-turn models: Model 12HP-5 10-turn models: Model 12HP-10 With pin terminals for p.c. board 5-turn models: 12HP-5p 10-turn models: 12HP-10p Features Multi-turn potentiometer 12HP-5 Wirewound Dimensions (mm) DxL: 13×25.5 Standard resistance range (ohm): 100-50k Independent linearity (±%): 0.35 to 0.2 Mechanical travel (+10° 0°): 1,800 +15° 0° Electrical travel (±5°): 1,800 Features Multi-turn potentiometer 12HP-10 Wirewound Dimensions (mm) DxL: 13×25.5 Standard resistance range (ohm): 100-100k Independent linearity (±%): 0.25 to 0.1 Mechanical travel (+10° 0°): 3,600 +15° 0° Electrical travel (±5°): 3,600 Special Specifications Available 3turn type (S12HP3), lower resistance values (20O, 50O), shaft with front and rear extension (rear shaft with 0.8mm dia. and 10mm length), special machining on the shaft, simple sealed housing (in case of servomount type, the housing length becomes longer by 1.5mm.
