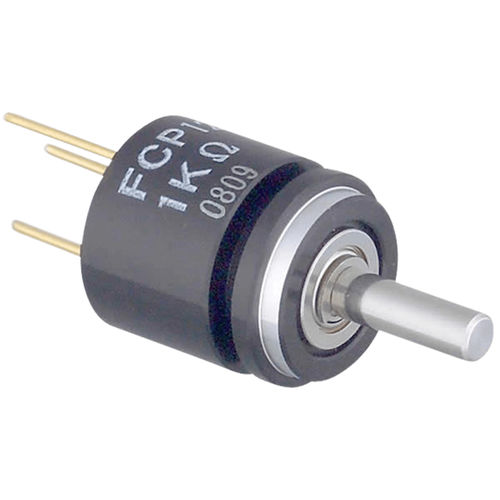

Single-turn potentiometer FCP12A

manualconductive plastic

FCP12A Single-turn Potentiometer Conductive Plastic - Servomount About the FCP12A Single-turn Potentiometer The FCP12A is a servomount type potentiometer with ball bearings and rear extended pin terminals. Features FCP12A - Conductive plastic (servomount) Conductive plastic Dimensions D x L (mm): 13x12.5 Standard Resistance Range 1 to 10 kilo ohm Independent Linearity (± %): 2.0 to 1.0 Mechanical travel (+10° 0°): 360° Electrical travel (±5°): 300° ±5° Special Specifications Available Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.
