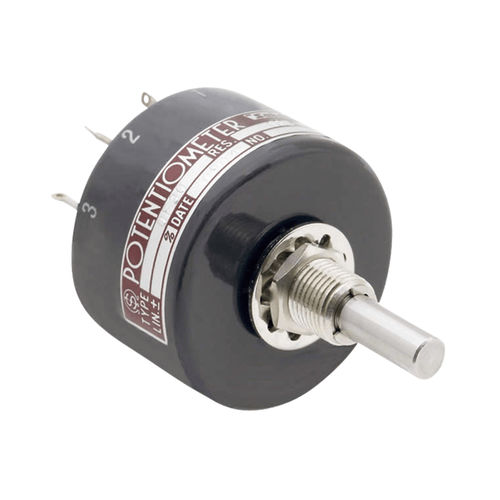

Single-turn potentiometer OF30

manualwire-woundwire-wound

OF30 Oil-filled Potentiometer Wirewound (Bushingmount) Potentiometer for harsh conditions (salt, moisture, organic gas) About the OF30 Oil-filled Potentiometer The OF30 is a small-sized single turn and general purpose type potentiometer with an outer diameter of 32mm. Features Oil-Filled Potentiometer OF30 Dimensions (mm) DxL: 32×21 Shaft Dia. (mm): 5 Independent linearity (±%): 2.0 to 0.5 Mechanical travel (+10° 0°): 360° Electrical travel (±5°): 280°±5° Special specifications available Lower resistance values (50O to 200O), extra taps (available up to 1 tap), special electrical travel, shaft dia. (ø 3.175mm) · bushing with inch dimensions, special machining on the shaft, with stopper (rotating angel becomes 300º and stopper strength is 0.3N·m [3kgf·cm]).
